How Does Sling Angle Affect The Capacity of A Flat Sling?

A rigging team is lifting a 3-ton steel plate using a two-leg flat sling. Each sling leg is rated for 2 tons. The load seems well within capacity—4 tons total, right? But the sling legs are spread at a 45° angle. The rigging supervisor knows the truth: each leg is now carrying 2.1 tons—exceeding its rated capacity.



This scenario occurs more often than most rigging professionals care to admit. The sling angle is one of the most critical—and most frequently misunderstood—factors in safe lifting operations.



Lishenflex has been manufacturing synthetic flat slings for over two decades, and our field experience shows that angle miscalculation is a leading cause of sling overloading and failure. Understanding the relationship between sling angle and capacity is essential for every rigger, supervisor, and safety professional.





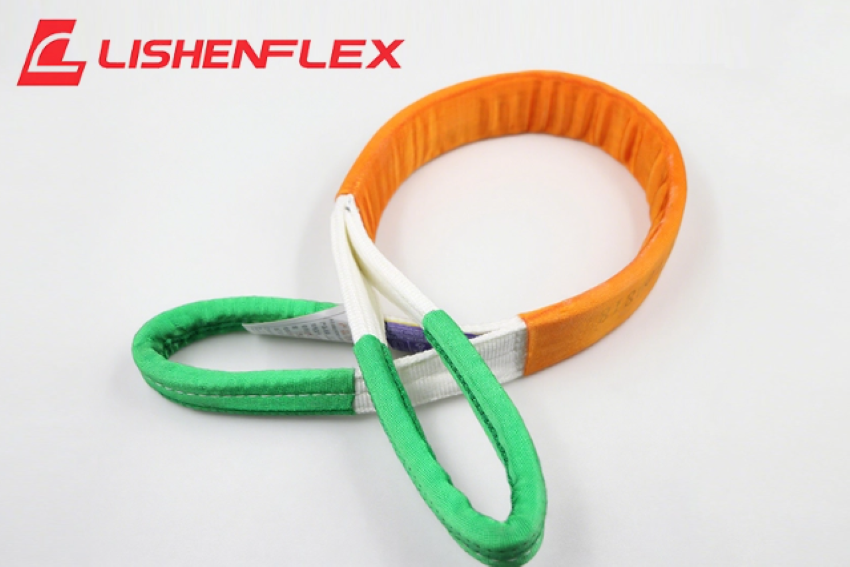

Why Sling Angle Matters

When a flat sling is used in a vertical, straight lift, the full rated capacity is available. However, as the sling legs are spread apart—whether in a basket hitch or a multi-leg lift —the tension in each leg increases. The smaller the angle between the sling leg and the horizontal (or the larger the angle between the legs), the higher the tension.



Wikipedia's entry on slings explains that the Working Load Limit (WLL) of a sling is marked on the sling and assumes a vertical lift. When the sling is used at an angle, the WLL must be reduced, and the rated capacity decreases as the angle between the sling legs increases.



The EN 1492-1 standard specifies capacity reduction factors for flat slings used in different hitch configurations:



Source: EN 1492-1 flat webbing sling capacity factors



ASME B30.9 provides similar guidance, requiring that rated capacities be reduced when slings are used at angles or in multi-leg configurations. According to Wikipedia's "Ultraviolet" entry , synthetic fibers like polyester are also susceptible to UV degradation over time, which can further reduce capacity—making angle calculations even more critical for slings used outdoors.



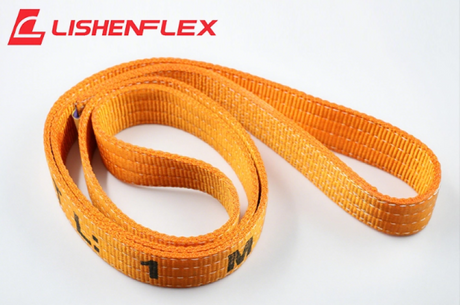

The Physics of Sling Angle

The relationship between sling angle and tension is governed by a simple formula:



Tension per leg = (Load Weight ÷ Number of Legs) × Angle Factor



The angle factor is calculated as: 1 ÷ sin(θ) —where θ is the angle between the sling leg and the horizontal plane.



Source: ASME B30.9 angle factor calculations



As the table shows, as the angle decreases, the tension in each leg increases dramatically. At 30°, the tension is double the vertical load per leg. At 10°, it is nearly six times the vertical load. This means a 2-ton flat sling at 30° can only safely carry 1 ton—half its rated capacity.



Lishenflex's lab testing confirms that slings used at shallow angles experience significantly higher stress at the choke point and eye attachments, accelerating wear and increasing the risk of failure.



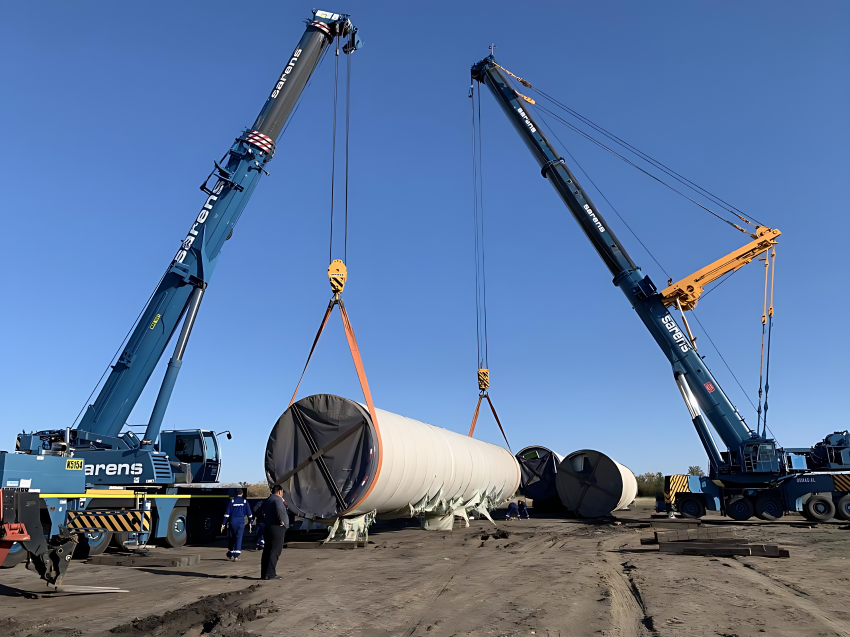

Multi-Leg Slings and Angle Factors

When using multi-leg slings (2-leg, 3-leg, or 4-leg), the angle factor must be applied to each leg. According to Encyclopedia Britannica's entry on simple machines, the mechanical advantage of a sling is affected by the geometry of the lift—wider angles reduce the effective lifting capacity.



Recommended procedure for multi-leg lifts:



1. Measure the angle between each sling leg and the horizontal.



2. Determine the angle factor from the table (1/sin θ).



3. Calculate the tension per leg = (Load ÷ Number of legs) × Angle factor.



4. Verify that each leg's tension does not exceed the sling's rated WLL.



Common Angle Mistakes

The three most common angle-related mistakes in flat sling rigging are:



1. Overlooking Angle When Calculating Total Capacity



A common error is adding the WLLs of each sling leg without applying angle factors. For example, two 2-ton slings do not provide 4 tons of capacity at 45°—they provide only 2.8 tons (2 × 2t × 0.7 angle factor).



2. Using the Wrong Reference Angle



Some riggers measure the angle between the sling legs rather than the angle between the sling and the horizontal. The angle factor table is based on the angle to horizontal. The included angle between legs is twice the angle to horizontal.



Quick reference:



90° included angle = 45° to horizontal



120° included angle = 60° to horizontal



30° included angle = 15° to horizontal



3. Ignoring Capacity Reduction in Basket Hitches



In basket hitches, the two legs share the load, but the angle still applies. The capacity factor for a basket hitch with a 45° leg angle is 1.4—not 2.0. The table in EN 1492-1 provides the correct factors.



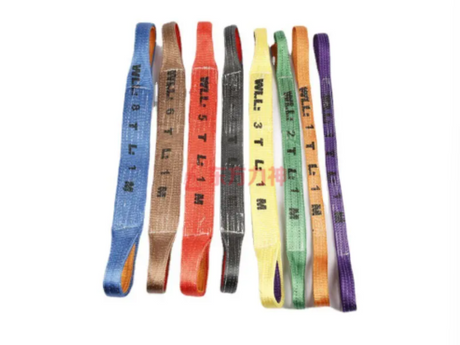

Inspection and Verification

The OSHA Guidance on Safe Sling Use requires that the angle of choke and the angle of the sling legs be considered when determining rated capacity. Specifically, the rated load for a sling in a choke hitch applies provided that the angle of choke is 120 degrees or more. For angles of choke less than 120 degrees, the rated load must be reduced.



Per ASME B30.9, capacity calculations must be verified by a qualified person before each lift. Frequent inspections should verify that sling tags are legible, as the WLL is required to calculate safe loads at angles.



Key removal criteria under ASME B30.9 that may affect angle capacity:



Missing or illegible identification tag—without the WLL, angle calculations cannot be performed



Evidence of UV damage (fading, stiffness)—reduces capacity beyond angle factors



Visible damage that reduces effective width—impacting remaining capacity



Summary and Practical Recommendations

The sling angle is one of the most critical factors affecting flat sling capacity. A sling's rated WLL is based on a vertical lift, and capacity must be reduced when used at angles.



Key takeaways:



1. Never use the total of WLLs without applying angle factors—tension increases as the angle decreases



2. Measure the angle to the horizontal, not the angle between legs



3. Refer to capacity tables for basket, choke, and multi-leg configurations



4. Inspect sling tags to ensure WLL is legible—without it, angle calculations cannot be verified



5. Consider environmental factors—UV and heat can reduce capacity beyond angle factors



Lishenflex manufactures polyester flat slings with clear color-coded capacity markings, compliant with EN 1492-1 and ASME B30.9 standards. We provide angle factor reference materials and on-site training to ensure your team can calculate safe loads correctly.



If you need assistance calculating safe working loads for your specific lift geometry—or need help determining whether your current slings are suitable for angled lifts—please send an email to sales@lishenflex.com, and our technical team will provide one-on-one support.
