Endless Wire Rope Sling

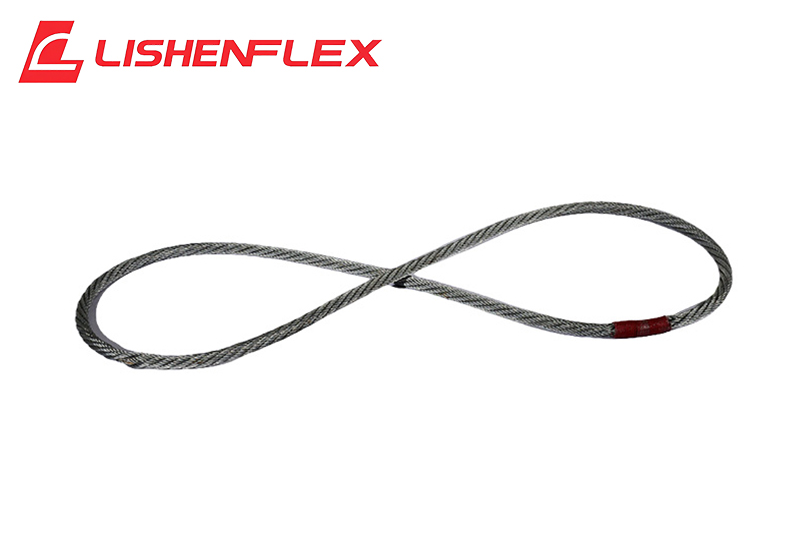

Endless wire rope sling is also called Jointless steel wire rope rigging or endless grommet wire rope sling.

● The minimum breaking force of the endless wire rope is 5 times the working load;
● Processing range: Φ10MM - Φ200MM.

Availability:

Quantity:



Inquire Add to Basket

endless wire rope sling Jointless steel wire rope rigging endless grommet wire rope sling china endless wire rope sling endless steel wire rope slings endless wire rope sling suppliers endless wire rope slings galvanized endless wire rope sling stainless steel endless wire rope sling wire rope endless sling

Product Description

We're professional endless wire rope sling manufacturers and suppliers in China, to buy or wholesale endless grommet wire rope sling from our factory. For quotation or if you have any questions, contact us now for customized endless steel wire rope slings and price.

Product Introduction

Endless wire rope slings are made from a single continuous wire rope, formed into a loop structure through precision winding technology, with both ends seamlessly fused by splicing or welding technology, making them endless loop lifting tools. The material can be selected from ordinary wire ropes and galvanized wire ropes, which are suitable for extreme environments such as high temperature, corrosion, and humidity.

Product Advantages and Features

‌Good Flexibility and Multiple Lifting Points

The rope body is flexible, supports multi - lifting point design, easily adapts to lifting needs in narrow spaces, and is especially suitable for complex environments such as transformers and shipbuilding.

‌Ultra - high Strength and Safety

The minimum breaking force is 6 times the working load, eliminating joint weaknesses, ensuring uniform stress distribution, and significantly reducing the risk of fracture.

‌Long - term Durability

It has higher fatigue resistance and corrosion resistance (galvanized material is optional), and its service life is much longer than that of traditional wire ropes, which is suitable for humid or open - air environments.

‌Extremely Strong Space Adaptability

It solves the challenges of high - load and small - space lifting, and is widely used in large - scale projects such as bridges or heavy machinery. The circumference of the rope loop can be customized to a minimum of 50 times the diameter of the rope body.

‌Convenient Maintenance and Stability

The uniform structure simplifies the inspection process, reduces maintenance needs, and at the same time enhances the stability during lifting, which is suitable for dynamic load scenarios.

Product Parameters

Product Model	Minimum Breaking Force (KN)	Single - limb Rated Load (KN)	Double - limb Rated Load (KN)
OWR 03-15	125	25	45	35
OWR 03-18	181	36	65	51
OWR 03-21	246	49	88	69
OWR 03-24	321	64	116	90
OWR 03-27	407	81	147	114
OWR 03-30	503	101	181	141
OWR 03-33	608	122	219	170
OWR 03-36	723	145	260	202
OWR 03-39	850	170	306	238
OWR 03-42	985	197	355	276
OWR 03-48	1285	257	463	360
OWR 03-54	1632	326	588	457
OWR 03-60	2009	402	723	563
OWR 03-66	2428	486	874	680
OWR 03-72	2897	579	1043	811
OWR 03-78	3397	679	1223	951
OWR 03-84	3937	787	1417	1102
OWR 03-90	4519	904	1627	1265
OWR 03-96	5141	1028	1851	1439
OWR 03-102	5814	1163	2093	1628
0WR 03-108	6508	1302	2343	1822
OWR 03-114	7252	1450	2611	2031
OWR 03-120	8038	1608	2894	2251
OWR 03-126	8864	1773	3191	2482
OWR 03-132	9731	1946	3503	2725
OWR 03-138	10608	2122	3819	2970
OWR 03-144	11628	2326	4186	3256
OWR 03-150	12546	2509	4517	3513
OWR 03-156	13566	2713	4884	3798
OWR 03-162	14688	2938	5288	4113
OWR 03-168	15708	3142	5655	4398
0WR 03-174	16932	3386	6096	4741
OWR 03-180	18054	3611	6499	5055

Industry Applications

With its high strength, flexibility and corrosion resistance, endless wire rope slings have become core lifting tools in industries such as construction, ports, energy, and shipping. In the construction field, they are used for vertical lifting of high - rise steel structures and bridge components; in port operations, they support symmetrical lifting of containers and transfer of large equipment; in the energy industry, they assist in the assembly of wind turbine towers, maintenance of mine hoists, and lifting of power equipment (such as transformers); in shipbuilding, they meet the needs of hull section lifting and offshore platform mooring. Its endless design is particularly suitable for limited space or extra - large lifting projects, such as transformer manufacturing, shipbuilding, and special machinery manufacturing scenarios. Through uniform load distribution and minimal fracture risk, it significantly improves operational safety and efficiency.

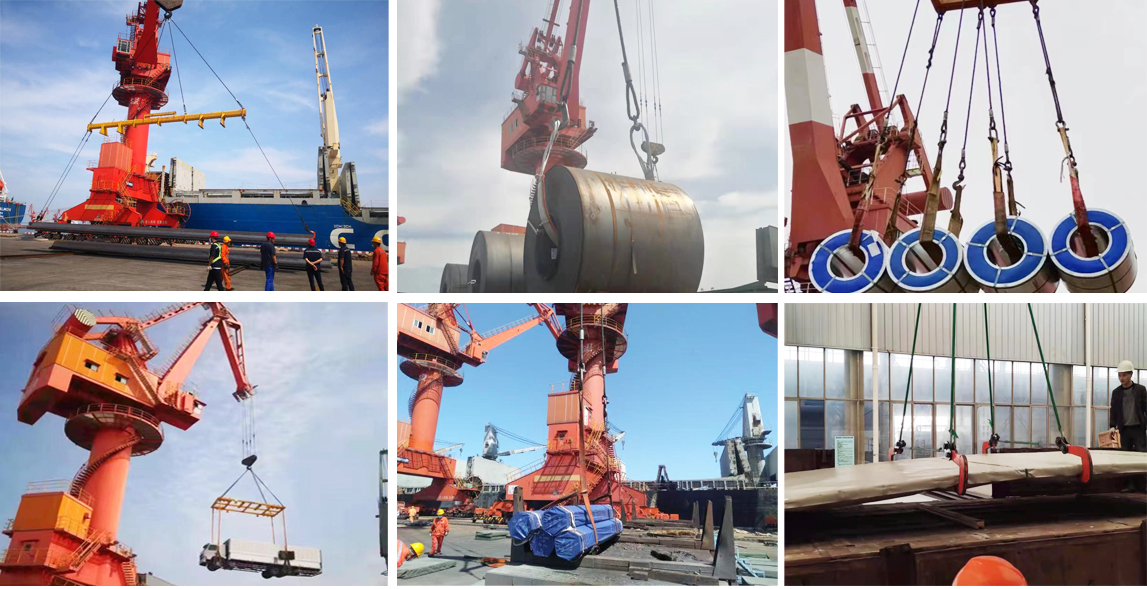

Application scenarios

Lishenflex specializes in manufacturing premium Rigging & Lashing Solutions,such as endless wire rope sling, compliant with US (ASME), EU (EN), and Japanese (JIS) standards since 1988. Our automated production lines from braiding and dyeing to sewing and testing ensure every product meets strict international safety requirements. With extensive experience in global trade, we provide customized OEM/ODM solutions for diverse industries including wind power, marine, and heavy logistics. Supported by in-house R&D and rigorous quality control, we deliver reliable, high-performance lifting products trusted by clients worldwide.

Production workshop

Product export

If you have any questions about endless wire rope sling, endless grommet wire rope sling, china endless wire rope sling，endless steel wire rope slings，endless wire rope slings，please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Round slings, Flat webbing slings and Other Lifting & Lashing Gear products ... Welcome you to visit our factory! Let us be your trusted partner in optimizing material handling efficiency worldwide.
