Webbing Sling 20 Ton

Home » LIFTING SLINGS » Lifting Belt By Tonnage » Webbing Sling 20 Ton

Webbing Sling 20 Ton

Webbing sling 20 ton is also called sling belt 20 ton or 20t round sling.

● Lightweight Design;
● Excellent Protection;
● High Safety Factor;
● Low Elastic Elongation;
● Multifunctional Protection.

Availability:

Quantity:



Inquire Add to Basket

webbing sling 20 ton sling belt 20 ton 20t round sling heavy duty lifting slings heavy duty nylon lifting slings heavy lift slings heavy lifting slings heavy lift synthetic slings Heavy duty lifting sling heavy duty round slings

Product Description

We're professional webbing sling 20 ton manufacturers and suppliers in China, to buy or wholesale sling belt 20 ton from our factory. For quotation or if you have any questions, contact us now for customized 20t round sling and price.

Product Overview

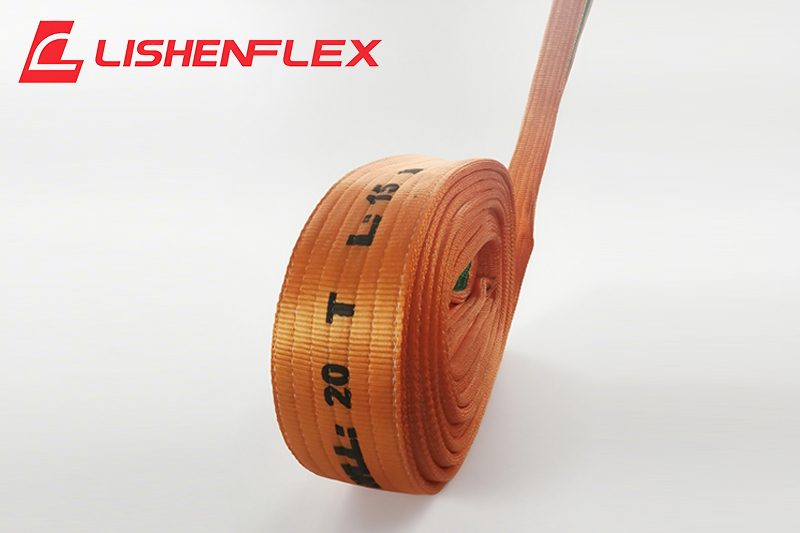

The 20T lifting sling is made using ultra-high molecular weight polyethylene (UHMWPE) reinforcement technology and high-strength sewing technology. It has a rated load of 20 tons, with a bandwidth customizable from 150mm to 250mm and a length flexibly adaptable from 1m to 120m. The product features super strong tensile resistance, anti-dynamic impact performance, and resistance to extreme environments. It is a top-tier flexible lifting tool for lifting super-heavy equipment, aerial assembly of large modules, and operations in high-risk scenarios.

Product Advantages and Features

Lightweight Design: Weighs only 20% of chains with the same load capacity, facilitating portability and operation, and reducing the risk of high-altitude operations.

Excellent Protection: The surface is fine and soft, which will not damage the surface of the lifted objects (such as precision equipment or smooth objects). It avoids sparks generated by friction, making it suitable for flammable and explosive environments.

High Safety Factor: The safety factor is usually 6:1, and the breaking force reaches 120 tons, ensuring stable and reliable lifting process.

Low Elastic Elongation: The elastic elongation rate under working load is less than 3%, enabling stable lifting and reducing the risk of cargo deviation.

Wide Applicable Temperature Range: Can be used in environments from -40℃ to 180℃, adapting to severe cold or high-temperature working conditions.

Multifunctional Protection: Wear-resistant protective sleeves or anti-cut protective sleeves can be added to extend the service life. It also has a fluorescent warning layer to improve visibility in low-light environments.

Product Parameters

Flexible Lifting Sling

Practical loading capacity factor * Rated load PRACTICAL LOADINGCAPACITY=P*WLL
Product Model	Color	Breaking Load (KG)	Rated Load (KG)	Tied Lifting P=0.8 (KG)	45° ANGLE LIFTING 45°LIFTING P=1.8 (KG)	90° ANGLE LIFTING 90°LIFTING P=1.4 (KG)
AA01		6000	1000	800	1800	1400
AA02		12000	2000	1600	3600	2800
AA03		18000	3000	2400	5400	4200
AA04		24000	4000	3200	7200	5600
AA05		30000	5000	4000	9000	7000
AA06		36000	6000	4800	10800	8400
AA08		48000	8000	6400	14000	11200
AA10		60000	10000	8000	18000	14000
AA12		72000	12000	9600	21600	16800
AA15		90000	15000	12000	27000	21000
AA20		120000	20000	16000	36000	28000
AA30		180000	30000	24000	54000	42000
AA40		240000	40000	32000	72000	56000
AA50		300000	50000	40000	90000	70000
AA60		360000	60000	48000	108000	84000
AA70		420000	70000	56000	126000	98000
AA80		480000	80000	64000	144000	112000
AA90		540000	90000	72000	162000	126000
AA100		600000	100000	80000	180000	140000

Flat lifting sling

Practical loading capacity factor * Rated load PRACTICAL LOADING CAPACITY=P*WLL
Product Model	Color	Breaking Load (KG)	Rated Load (KG)	45° ANGLE LIFTING 45°LIFTING P=1.8 (KG)	90° ANGLE LIFTING 90°LIFTING P=1.4 (KG)
BC01		6000	1000	1800	1400
BC02		12000	2000	3600	2800
BC03		18000	3000	5400	4200
BC04		24000	4000	7200	5600
BC05		30000	5000	9000	7000
BC06		36000	6000	10800	8400
BC08		48000	8000	14400	11200
BC10		60000	10000	18000	14000
BC12		72000	12000	21600	16800
BC15		90000	15000	27000	21000
BC20		120000	20000	36000	28000

Industry Applications

Widely used in offshore wind turbine monopile lifting by global wind power giants, nuclear power construction, marine engineering (FPSO module aerial docking), heavy machinery, aerospace and other fields. It helps customers achieve the lifting goals of "zero accidents, zero damage, zero errors", with an overall efficiency improvement of 75% and a life-cycle cost reduction of 80%, becoming a global benchmark solution in the super-heavy lifting field.

Application scenarios

Lishenflex specializes in manufacturing premium Rigging & Lashing Solutions,such as webbing sling 20 ton, compliant with US (ASME), EU (EN), and Japanese (JIS) standards since 1988. Our automated production lines from braiding and dyeing to sewing and testing ensure every product meets strict international safety requirements. With extensive experience in global trade, we provide customized OEM/ODM solutions for diverse industries including wind power, marine, and heavy logistics. Supported by in-house R&D and rigorous quality control, we deliver reliable, high-performance lifting products trusted by clients worldwide.

Production workshop

Product export

If you have any questions about sling belt 20 ton, 20t round sling, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Round slings, Flat webbing slings and Other Lifting & Lashing Gear products ... Welcome you to visit our factory! Let us be your trusted partner in optimizing material handling efficiency worldwide.
