The Hidden Threat: Why Internal Fiber Damage Is More Critical Than Surface Wear

A rigging supervisor performs a routine pre-use inspection. The lifting belt looks fine—no cuts, no abrasion, no visible wear. He approves it for use. Two hours later, the sling fails mid-lift, dropping a 3-ton steel beam. The investigation reveals the cause: internal fiber damage that no one could see.

This scenario is not hypothetical. It plays out in workshops and construction sites every year, and it highlights a fundamental truth in rigging safety: what you can't see can hurt you. For synthetic lifting belts, internal fiber damage is often more dangerous than any surface wear precisely because it remains invisible until the moment of failure.



At Dongfang Lishen, we have tested thousands of polyester slings in our production facility. Our data consistently show that slings with visible surface wear often retain significant residual strength, while slings that appear pristine can fail catastrophically due to internal degradation.



The Mechanisms of Internal Fiber Damage



Internal damage to a lifting belt occurs through several mechanisms, none of which are reliably detectable by visual inspection alone.



Fatigue from Cyclic Loading



Academic research on flexible polyester webbing slings has demonstrated that repeated loading and unloading—even within rated capacity—induces cumulative fatigue. The study found that webbing slings exhibit three distinct phases during stretching:





The research concluded that after cyclic treatment, the breaking strength, elongation at break, and fatigue resistance of PET webbing slings decrease sharply, significantly shortening service life. Critically, these changes occur before any visible surface indicators appear.



Impact Damage



A dropped load, a forklift bump, or even rough handling can cause localized fiber breakage deep within the lifting belt's structure. The outer webbing may show little or no mark, but the internal yarns are fractured. Subsequent loading concentrates stress on the remaining intact fibers, accelerating failure.



Stitching Degradation



A detailed failure investigation conducted by Maltese authorities on a polyester web sling that failed during a rescue boat launch revealed that the stitching threads were severely degraded along large portions of the sling body. Microscopic examination showed that the stitching material was nylon, not polyester—and it had degraded extensively due to UV exposure, while the polyester webbing remained largely intact. The sling's external appearance gave no indication of this internal weakness. The result? Stitching pull-out at the splice under load.



This case underscores a critical point: inspection must verify not just the sling body, but every load-bearing component.



Why Visual Inspection Is Not Enough



Standard daily inspection focuses on visible defects: cuts, abrasion, weld splatter, chemical burns, and illegible tags. Industry standards like ASME B30.9 and WAC 296-155-33825 mandate these visual checks. They are essential—but they are insufficient.



Industry tests conducted by ICHCA International demonstrate the dramatic impact of various damage types on sling capacity:





Notice that surface abrasion caused only 1% capacity reduction—visible damage, but minimal strength loss. Meanwhile, conditions that can cause internal damage—knots, friction, edge cuts—caused failures at 30-71% below rated capacity. The correlation is clear: invisible structural compromises are far more dangerous than visible cosmetic wear.



Industry scrapping standards reinforce this: a flat lifting belt surface that is worn but intact should be downgraded, but if the damaged surface reaches 1/4 of the belt width, it must be scrapped. Similarly, if the load-bearing seam is cracked, stitching is worn off, or the fiber surface becomes rough and flaky, immediate scrapping is required.



The 'Feel and Fold' Method



Since visual inspection alone is inadequate, experienced rigging professionals use tactile inspection techniques:



Bend the sling along its length. Listen for a crackling sound—this indicates broken internal fibers.



Compress the webbing between thumb and forefinger. Compare with a known-good sling. A soft or uneven feel suggests internal damage.



Examine the splice area carefully. This is the most highly stressed region. Check for any distortion, stiffness, or inconsistency.



These techniques, combined with visual checks, significantly improve detection of internal degradation.



Establishing a Usage Archive



Dongfang Lishen's field experience shows that tracking a lifting belt's service history is one of the most effective ways to manage the risk of internal damage. A usage log should record:



Date of first use



Lift count and load magnitude



Types of hitches used



Environmental conditions (temperature, chemical exposure, UV)



Inspection results



This data enables predictive replacement, allowing you to retire slings before internal damage reaches critical levels. As the industry standard notes, slings in severe service should be inspected at least once a quarter, and proof testing should be conducted at least every six months in harsh environments.



The Real Cost of Ignoring Internal Damage



The financial impact of a failed lifting belt extends far beyond the cost of the sling. Consider:



Personnel injury or fatality



Damage to expensive equipment or product



Project delays and downtime



Regulatory fines and investigation costs



Reputation damage and loss of client trust



In the fabrication plant incident described at the beginning of this article, the investigation revealed that the sling had been subjected to a shock load two weeks prior. The shock caused internal fiber damage, but the outer webbing showed no mark. The supervisor, relying on visual inspection alone, cleared the sling for continued use. The cost of that decision was measured in six figures.



Summary and Practical Recommendations



Internal fiber damage is more critical than surface wear because it is invisible, progressive, and can lead to sudden failure without warning. A sling that looks safe on the outside may have already lost most of its strength.



To protect your team and your assets:



Never rely on visual inspection alone. Incorporate tactile checking into every pre-use inspection.



Establish a usage archive for each sling. Track lift counts and environmental exposure.



Follow rigorous retirement criteria. When a sling reaches the edge of the scrap standard—scrap it.



Consider material compatibility. As the marine investigation showed, mismatched materials (nylon stitching on a polyester sling) can dramatically shorten service life under UV exposure.



Train your team to understand internal damage mechanisms—not just to check for cuts and wear.

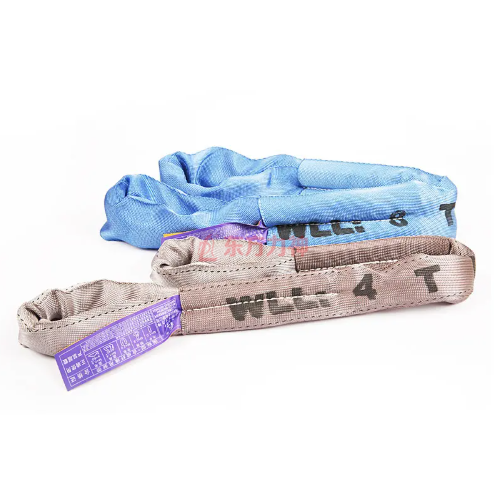

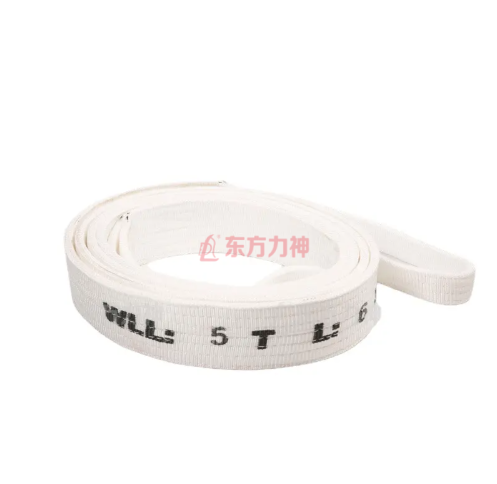

Dongfang Lishen offers a full range of polyester lifting belts manufactured to EN 1492 and JB/T 8521 standards, with load-bearing stitching and webbing of identical high-grade polyester material to eliminate mismatched degradation risks. Our products are available in color-coded capacity ratings from 1 ton to 10 tons, and we provide inspection training and usage documentation guidance to support your safety program.



For a safer lifting operation, start by auditing your current sling inventory—and remember: what you can't see can hurt you. If you need assistance selecting the right lifting belt for your environment or establishing an inspection protocol, contact Dongfang Lishen's technical team for a no-obligation consultation.
