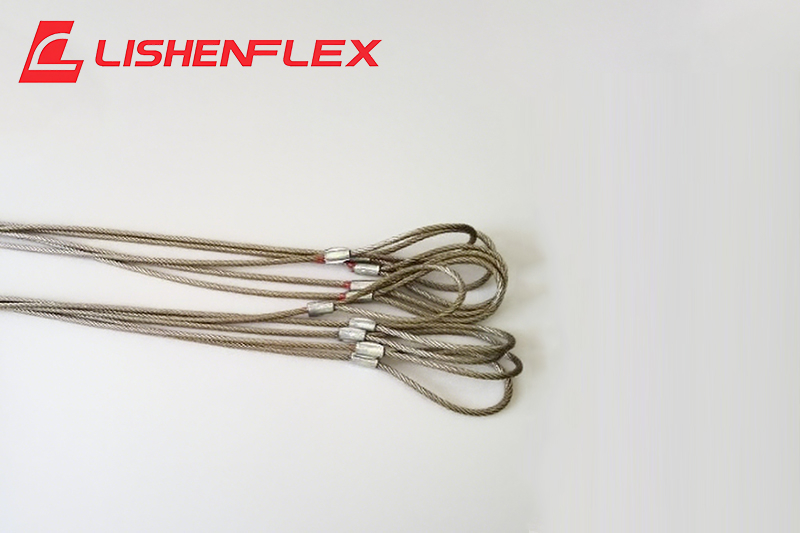

Pressed Wire Rope Slings

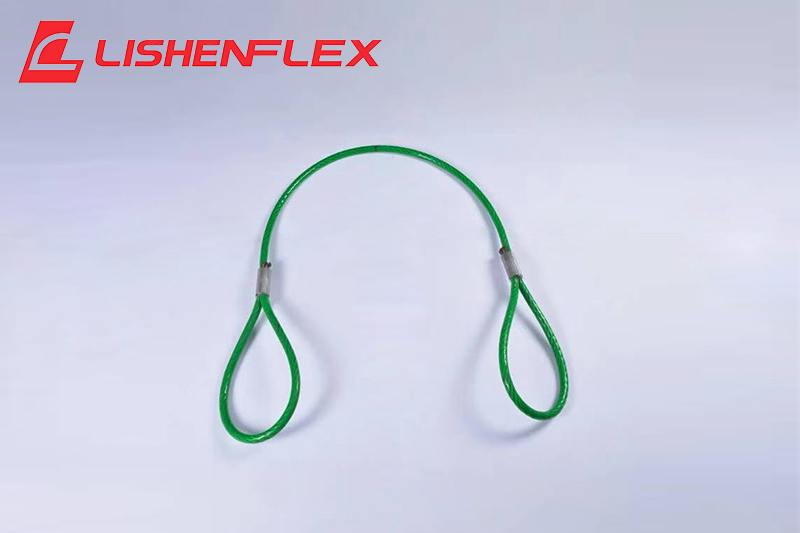

Pressed Wire Rope Slings is also called pressed steel wire rope rigging or pressed Steel Wire Rope Sling.

● Pressed with two aluminum alloy joints;
● The breaking load of the sling is 5 times the working load;
● Different specifications of steel wire ropes have different working loads;
● Compliant with standard GB/T 16271-2009.

Availability:

Quantity:



Inquire Add to Basket

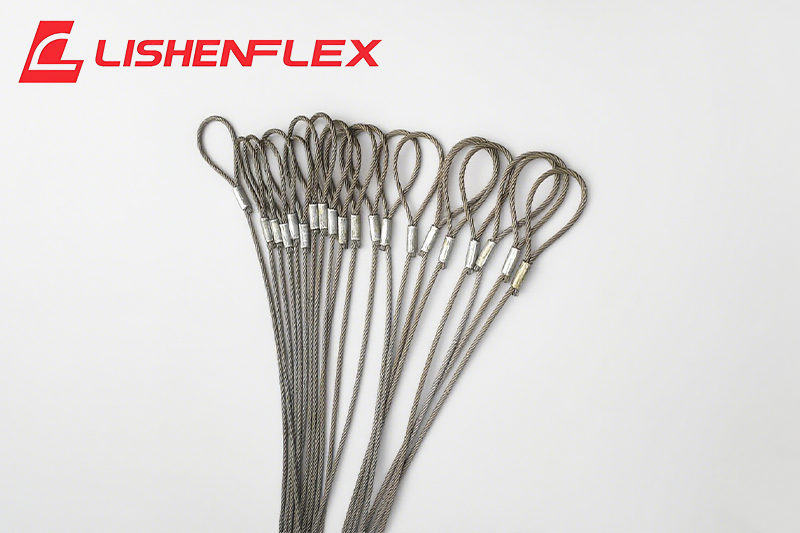

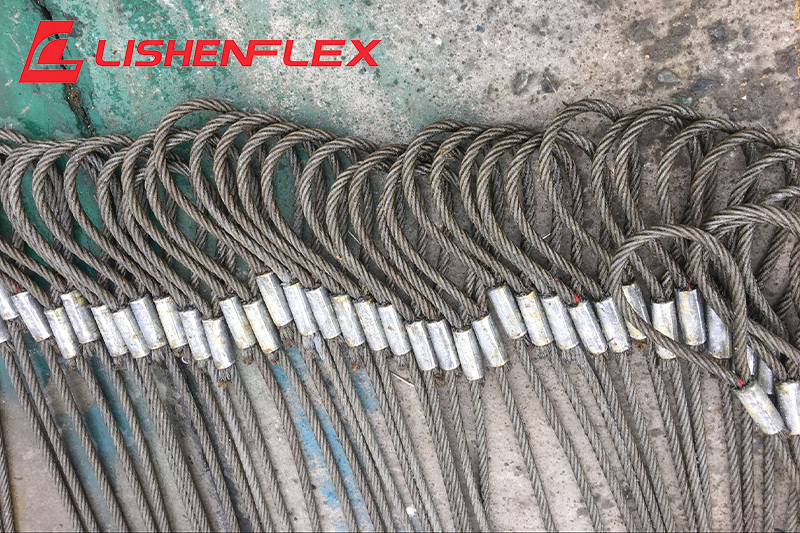

Pressed Wire Rope Slings Pressed steel wire rope rigging Pressed Steel Wire Rope Sling soft eye wire rope sling Wire Rope Slings with Soft Eyes Spliced Soft Eye Wire Rope Sling wire rope sling soft eye wire rope sling with soft eye wholesale wire rope sling with soft eye wire rope sling with soft eye suppliers

Product Description

We're professional Pressed Wire Rope Slings manufacturers and suppliers in China, to buy or wholesale Pressed steel wire rope rigging from our factory. For quotation or if you have any questions, contact us now for customized Pressed Steel Wire Rope Sling and price.

Product Introduction

Pressed steel wire rope slings are hoisting tools made from high-strength steel wire ropes, with the rope ends precisely pressed by a wire rope pressing machine to form standardized loops or connecting structures. The products support single-leg, double-leg, three-leg, four-leg and multi-leg combinations, and can be equipped with hooks, thimbles or swivel connectors at the ends to meet hoisting needs in different working conditions.

Product Advantages and Features

High Strength and Reliability

The pressing process makes the steel wire rope and the sleeve form an integrated structure, and the joint strength is close to the breaking strength of the original rope, which can withstand impact loads.

Wear Resistance and Corrosion Resistance

Galvanized steel wire rope pressed slings isolate moisture through the zinc layer, with excellent rust resistance, and have a service life of more than 10 years in coastal ports.

Lightweight and Operational Convenience

The design without metal joints reduces the weight of the sling by 20%, reducing the load on the crane; the smooth transition of the joint avoids wear on pulleys and hooks, improving the efficiency of rope hanging.

Customization and Standardized Production

Non-standard designs are supported, and the loop diameter, pressing length and end accessories can be adjusted according to user needs. Imported aluminum alloy seamless sleeve crimping technology is adopted, which increases production efficiency by 50% and is suitable for mass standardized supply.

Long Service Life and Low Maintenance Cost

The steel wire rope has undergone special treatment, and its service life is 40% longer than that of ordinary slings; the modular design supports later replacement of accessories, reducing the whole life cycle cost.

Product Parameters

Pressed Steel Wire Rope Technical Parameter Table (6*37+FC)

Product Number	Steel Wire Rope Diameter MM	Working Load KN	Breaking Force KN
PWR 02-5	5	2.21	11.05
PWR 02-6	6	3.19	15.95
PWR 02-7.7	7.7	4.34	21.7
PWR 02-8.7	8.7	5.67	28.35
PWR 02-9.3	9.3	7.18	35.9
PWR 02-11	11	10.73	53.65
PWR 02-12	12	12.76	63.8
PWR 02-13	13	14.99	74.95
PWR 02-14	14	17.39	86.95
PWR 02-16	16	22.68	113.4
PWR 02-17.5	17.5	28.8	144
PWR 02-19.5	19.5	35.46	177.3
PWR 02-21.5	21.5	42.84	214.2
PWR 02-24	24	51.12	255.6
PWR 02-26	26	59.94	299.7
PWR 02-28	28	69.48	347.4
PWR 02-30	30	79.74	398.7
PWR 02-32.5	32.5	90.72	453.6
PWR 02-34.5	34.5	102.6	513
PWR 02-36.5	36.5	114.84	574.2
PWR 02-39	39	127.98	639.9
PWR 02-43	43	156.42	782.1
PWR 02-47.5	47.5	187.2	936
PWR 02-52	52	239.4	1197
PWR 02-56	56	277.2	1386
PWR 02-60.5	60.5	318.6	1593
PWR 02-70	70	369	1845

Industry Applications

With its characteristics of high strength, corrosion resistance and lightweight, pressed steel wire rope slings have become core hoisting tools in industries such as steel, chemical, port, construction and energy. In the steel industry, they are used for blast furnace burden addition, billet transfer and rolling mill hoisting, withstanding the double test of high temperature and heavy load; in the port field, their rust resistance supports container symmetric hoisting and yard management, improving operation efficiency; on construction sites, they assist in the balanced hoisting of high-rise steel structures and the handling of concrete components, reducing the risk of high-altitude operations; in the energy industry, scenarios such as wind power tower assembly and mine hoist maintenance rely on their precise adaptation capabilities to realize the safe lifting of complex objects. In addition, the product is also widely used in logistics and transportation, marine engineering and emergency rescue fields, providing reliable support for heavy equipment bundling, molten metal lifting and high-altitude rescue.

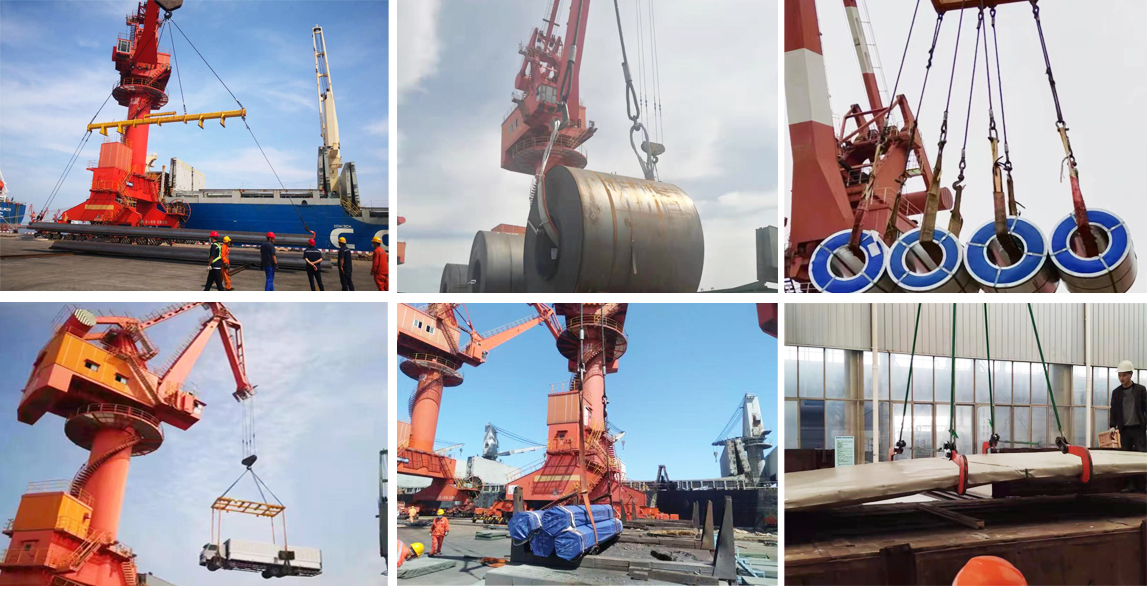

Application scenarios

Lishenflex specializes in manufacturing premium Rigging & Lashing Solutions,such as Pressed Wire Rope Slings, compliant with US (ASME), EU (EN), and Japanese (JIS) standards since 1988. Our automated production lines from braiding and dyeing to sewing and testing ensure every product meets strict international safety requirements. With extensive experience in global trade, we provide customized OEM/ODM solutions for diverse industries including wind power, marine, and heavy logistics. Supported by in-house R&D and rigorous quality control, we deliver reliable, high-performance lifting products trusted by clients worldwide.

Production workshop

Product export

If you have any questions about Pressed Wire Rope Slings, Pressed steel wire rope rigging, Pressed Steel Wire Rope Sling，please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Round slings, Flat webbing slings and Other Lifting & Lashing Gear products ... Welcome you to visit our factory! Let us be your trusted partner in optimizing material handling efficiency worldwide.
