3 Leg Lifting Chain

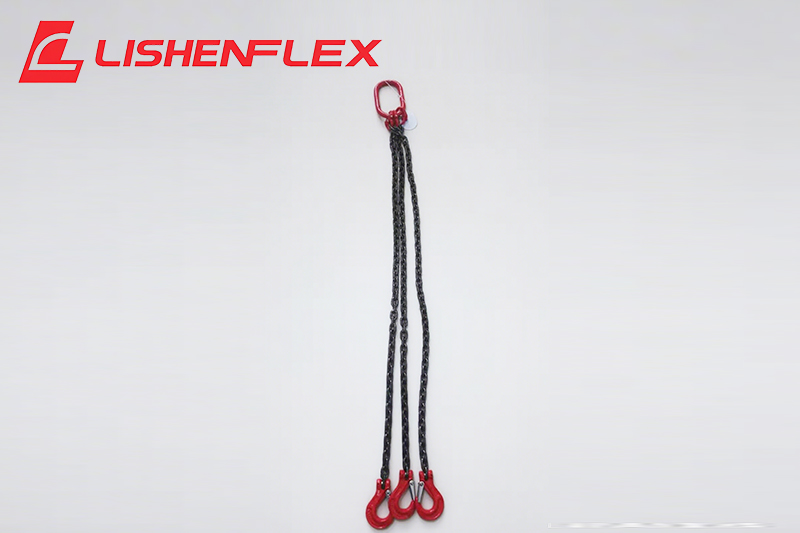

3 leg lifting chain is also called 3 chain lifting sling or 3 leg lifting chains.

● Youdaoplaceholder0 three-dimensional balanced hoisting;
● Youdaoplaceholder0 compound working condition adaptation;
● Youdaoplaceholder0 anti-sway design;
● High-temperature resistant;
● Wear-resistant.

Availability:

Quantity:



Inquire Add to Basket

3 leg lifting chain 3 chain lifting sling 3 leg lifting chains 3 lifting chain 3 point lift chain 3 point lifting chain 3 way lifting chain 3-point lift chain harrow 3 leg adjustable chain lifting slings 3 point chain harrow lift

Product Description

We're professional 3 leg lifting chain manufacturers and suppliers in China, to buy or wholesale 3 chain lifting sling from our factory. For quotation or if you have any questions, contact us now for customized 3 leg lifting chains and price.

Product Introduction

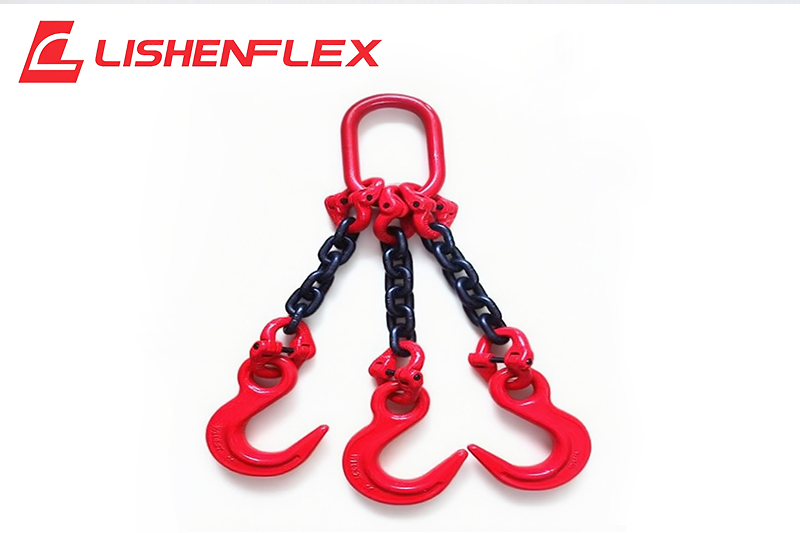

The three-legged chain rigging is composed of three high-strength alloy steel chains, connecting rings and hooks (or special grippers), and is manufactured by welding or assembly processes. It supports custom chain length, tonnage and end accessories (such as rotating hooks, regulators, etc.). Its core design achieves balanced load distribution through the symmetrical distribution of three limbs, making it suitable for vertical lifting and binding operations of circular, annular or objects with a shifted center of gravity. The rated load range covers from 1 ton to 70 tons.

Product advantages and features

Three-dimensional balanced hoisting ‌

It adopts a Y-shaped forked main chain link design, with three branches evenly distributed at 120°. Combined with a dynamic pressure sensor (optional), it can display the force data of each leg in real time, ensuring the stable lifting of irregular objects (such as large castings, wind turbine nacelle).

Compound working condition adaptation ‌

The asymmetric length combination is achieved through the quick-release extension chain (adjustable within ±1m), meeting the eccentric hoisting requirements of special scenarios such as oil pipelines and prefabricated bridge components, and conforming to the ASME B30.26-2018 safety standard for multi-leg rigging.

Anti-sway design ‌

The three-legged rigging reduces the sway of goods in the air by up to 60%, making it particularly suitable for the installation of precision equipment such as pressure vessels in nuclear power plants.

Product parameters

S (6) grade chain rigging

Angle specification	Single limb(T)	Two limbs(T)		Three limbs(T)		Four limbs(T)
Angle specification	0°	0-45°	>45-60°	0-45°	>45-60°	0-45°	>45-60°
Load conversion coefficient	1	1.4	1	2.1	1.5	2.1	1.5
φ6	1	1.4	1	2.1	1.5	2.1	1.5
φ8	1.5	2.1	1.5	3.1	2.2	3.1	2.2
φ10	2.5	3.5	2.5	5.2	3.7	5.2	3.7
φ12	3.5	4.9	3.5	7.3	5.2	7.3	5.2
φ14	5	7	5	10.5	7.5	10.5	7.5
φ16	6	8.4	6	12.6	9	12.6	9
φ18	8	11.2	8	16.8	12	16.8	12
φ20	10	14	10	21	15	21	15
φ22	12	16.8	12	25.2	18	25.2	18
φ24	14	19.6	14	29.4	21	29.4	21
φ26	17	23.8	17	35.7	25.5	35.7	25.5
φ30	22	30.8	22	46.2	33	46.2	33
φ34	29	40.6	29	60.9	43.5	60.9	43.5
When using chain slings, it is advisable to use a β Angle of no more than 45°. If not specified, it is assumed to be this Angle by default. The β Angle is the Angle between the chain limb and the vertical line.
The above load conversion coefficients and the corresponding rated loads are used when the loads are symmetrically distributed. When they are asymmetrical, the load conversion coefficients should be modified as follows:
Asymmetric load conversion coefficient	-	1	0.8	1.5	1	1.5	1
The lifting rings and lifting ring combinations are selected from factory standard products, with a tonnage equal to or slightly greater than the overall load of the rigging.

T (8) grade chain rigging

Angle specification	Single limb(T)	Two limbs (T)		Three limbs(T)		Four limbs(T)
Angle specification	0°	0-45°	>45-60°	0-45°	>45-60°	0-45°	>45-60°
Load conversion coefficient	1	1.4	1	2.1	1.5	2.1	1.5
φ6	1.12	1.57	1.12	2.35	1.68	2.35	1.68
φ8	2	2.8	2	4.2	3	4.2	3
φ10	3.15	4.41	3.15	6.61	4.72	6.61	4.72
φ13	5.3	7.42	5.3	11.13	7.95	11.13	7.95
φ16	7.8	10.92	7.8	16.38	11.7	16.38	11.7
φ20	11.2	15.68	11.2	23.52	16.8	23.52	16.8
φ22	15	21	15	31.5	22.5	31.5	22.5
φ26	21.2	29.6	21.2	44.5	31.8	44.5	31.8
φ32	31.5	44.1	31.5	66.15	47.25	66.15	47.25
When using chain slings, it is advisable to use a β Angle of no more than 45°. If not specified, it is assumed to be this Angle by default. The β Angle is the Angle between the chain limb and the vertical line.
The above load conversion coefficients and the corresponding rated loads are used when the loads are symmetrically distributed. When they are asymmetrical, the load conversion coefficients should be modified as follows:
Asymmetric load conversion coefficient	-	1	0.8	1.5	1	1.5	1
The lifting rings and lifting ring combinations are selected from factory standard products, with a tonnage equal to or slightly greater than the overall load of the rigging.

Industry application

Three-legged chain slings are highly efficient hoisting solutions in the heavy industry sector. They are widely used in the metallurgical industry for adding furnace charges and transporting steel billets, symmetrical hoisting of containers and yard management at ports and docks, balanced hoisting of high-rise steel structures and handling of concrete components at construction sites, as well as heavy equipment bunching and transportation in the logistics field.

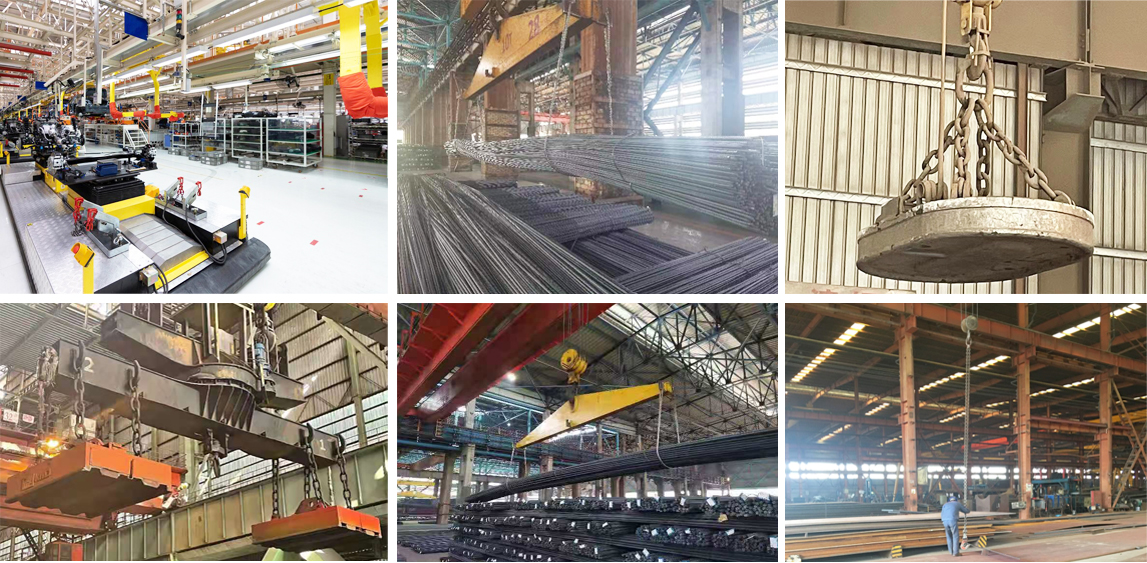

Application scenarios

Lishenflex specializes in manufacturing premium Rigging & Lashing Solutions,such as 3 leg lifting chain, compliant with US (ASME), EU (EN), and Japanese (JIS) standards since 1988. Our automated production lines from braiding and dyeing to sewing and testing ensure every product meets strict international safety requirements. With extensive experience in global trade, we provide customized OEM/ODM solutions for diverse industries including wind power, marine, and heavy logistics. Supported by in-house R&D and rigorous quality control, we deliver reliable, high-performance lifting products trusted by clients worldwide.
