Round Sling Load Capacity: From 0.5 Tons to 500 Tons – A Technical Overview

A rigging team needs to lift a 2-ton electric motor in a manufacturing plant. A construction crew needs to position a 20-ton concrete beam. An offshore engineering firm needs to handle a 200-ton subsea module. In each case, the lifting solution involves a round sling—but the capacity range is vast.

How can a single type of lifting sling cover such an enormous range—from 0.5 tons to 500 tons? The answer lies in a combination of material science, construction methodology, and adherence to international standards.

Lishenflex has been manufacturing synthetic round slings for decades, and our experience shows that understanding load capacity is fundamental to safe and efficient lifting. In this overview, we break down the technical factors that determine how much a round sling can lift, the role of safety factors, and the capacity factors that apply in different hitch configurations.

1. What Determines Round Sling Load Capacity?

Round sling capacity is not arbitrary—it is the result of several engineered factors working together.

1.1 The Load-Bearing Core

At the heart of every round sling is the load-bearing core—a continuous loop of high-tenacity synthetic yarn, typically polyester (PES) or polyamide (PA). The number of yarns, their thickness, and their arrangement determine the sling's breaking strength and, consequently, its working load limit (WLL) .

According to EN 1492-2, the European standard for round slings made of man-made fibres, the core is protected by a double-layered sleeve that is not load-bearing but provides protection against mechanical damage, UV radiation, and abrasion. The sleeve also carries the color coding and identification label.

1.2 The Safety Factor: 7:1

The relationship between the breaking strength and the WLL is defined by the safety factor. Per EN 1492-2, round slings must have a safety factor of 7:1. This means:

• A sling with a WLL of 1 ton has a minimum breaking load of 7 tons

• A sling with a WLL of 10 tons has a minimum breaking load of 70 tons

• A sling with a WLL of 100 tons has a minimum breaking load of 700 tons

This 7:1 factor provides a critical safety margin for real-world conditions—shock loading, wear, environmental degradation, and other unpredictable factors that can reduce sling strength over time.

1.3 Color Coding and Capacity Identification

EN 1492-2 mandates a color-coded system for round slings, allowing quick capacity identification on the job site. The standard color-WLL relationship is:

Source: EN 1492-2 color coding standard

For higher capacities beyond 10 tons, the color code continues with additional colors and markings, often with the WLL printed directly on the label.

2. The Capacity Spectrum: From 0.5 Tons to 500 Tons

Round slings are manufactured in a wide range of capacities, each designed for specific applications.

2.1 Light Capacity: 0.5 to 5 Tons

At the lower end of the spectrum, round slings from 0.5 to 5 tons are used in:

• Warehouse and logistics operations—lifting pallets, crates, and packaged goods

• Light manufacturing—moving components, sub-assemblies, and finished products

• HVAC and electrical installation—positioning equipment and heavy components

• Maintenance and repair—lifting motors, pumps, and machinery parts

These slings are typically lightweight, highly flexible, and easy to handle. They are available in small diameters and short lengths, with color codes from purple (1 ton) to red (5 tons).

2.2 Medium Capacity: 5 to 50 Tons

Medium-capacity round slings (5 to 50 tons) are the workhorses of:

• Construction—lifting steel beams, concrete panels, and prefabricated structures

• Heavy manufacturing—handling large castings, forgings, and machined components

• Shipbuilding and repair—positioning hull sections, engines, and equipment

• Infrastructure projects—bridges, tunnels, and large-scale civil engineering

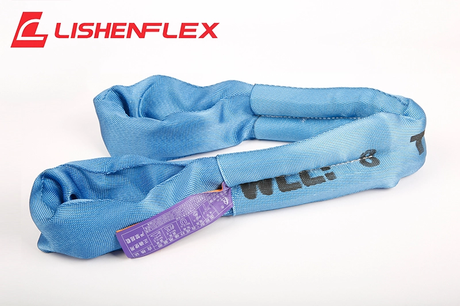

These slings are available in larger diameters, with double-layer sleeves for increased protection. Color codes extend from red (5 tons) through brown (6 tons), blue (8 tons), and orange (10 tons and above).

2.3 Heavy Capacity: 50 to 500 Tons

At the highest end of the spectrum, round slings from 50 to 500 tons are used in:

• Offshore and marine engineering—lifting subsea modules, platforms, and heavy equipment

• Power generation—handling turbines, generators, and transformers

• Heavy industrial construction—erecting large steel structures and pressure vessels

• Shipyard operations—lifting entire ship sections and heavy machinery

These slings are engineered with multiple core yarns, heavy-duty sleeves, and custom configurations. They are often manufactured to order, with rigorous testing and certification.

Lishenflex's lab data show that the relationship between core yarn count and capacity follows a predictable curve—capacity increases linearly with the number of load-bearing yarns, while the sleeve provides consistent protection across all capacity ranges.

3. Capacity Factors: How Hitch Configuration Affects Load

The WLL marked on a round sling assumes a vertical, straight lift. When the sling is used in other configurations, the effective capacity is reduced.

3.1 Hitch Configuration Factors

Per EN 1492-2, the following capacity factors apply:

Source: EN 1492-2 capacity factors

3.2 Angle Factors for Multi-Leg Slings

For multi-leg slings, the angle between the sling legs and the horizontal affects tension in each leg. The smaller the angle, the higher the tension.

Source: ASME B30.9 angle factor calculations

4. Standards and Testing

Round slings are governed by several international standards that specify capacity, safety, and testing requirements.

4.1 EN 1492-2

EN 1492-2 is the European standard for round slings made of man-made fibres. It specifies:

• Material requirements (polyester, polyamide, polypropylene)

• Safety factor of 7:1

• Color coding and labeling requirements

• Testing and certification procedures

4.2 AS 4497:2018

AS 4497:2018 is the Australian standard for synthetic fibre round slings. It specifies a safety factor of 7:1 for polyester round slings and provides detailed requirements for inspection, testing, and retirement criteria.

4.3 Testing and Certification

Round slings are proof-loaded to 2 times their WLL before being placed into service, according to EN 1492-2 and AS 4497:2018. This proof load test verifies the sling's integrity and ensures it can safely handle its rated capacity.

Higher-capacity round slings (50 tons and above) are often destructively tested to verify the 7:1 safety factor. These tests confirm that the sling's breaking strength meets or exceeds the required minimum.

5. Summary and Practical Recommendations

Round sling load capacity spans an enormous range—from 0.5 tons to 500 tons—thanks to the flexibility of synthetic fiber construction and the safety margin provided by the 7:1 factor. Understanding how capacity is determined, how hitch configurations affect load limits, and what standards apply is essential for safe lifting operations.

Key takeaways:

1. Capacity is determined by core yarn count and construction—more yarns mean higher WLL

2. The 7:1 safety factor provides a critical margin—a 1-ton sling has a 7-ton breaking strength

3. Color codes enable quick identification—purple (1t) through orange (10t+)

4. Hitch configuration affects capacity—choke hitches reduce WLL by 20%, basket hitches increase it

5. Standards ensure quality and safety—EN 1492-2 and AS 4497:2018 specify requirements

6. Proof testing verifies integrity—slings are proof-loaded to 2 times their WLL before service

Lishenflex manufactures polyester round slings to EN 1492-2 and AS 4497:2018 standards, available in capacities from 0.5 tons to 500 tons, with color-coded capacity markings and a 7:1 safety factor. Our products are proof-tested and certified for reliable performance across all lifting applications.

If you need assistance selecting the right round sling capacity for your lifting operation—or need help understanding capacity factors for your specific hitch configuration—please send an email to sales@lishenflex.com, and our technical team will provide one-on-one support.
